Specifications and Construction Sheet (Malaysia)

Last modified: 2024-10-10 by zachary harden
Keywords: malaysia | construction sheet |
Links: FOTW homepage | search | disclaimer and copyright | write us| mirrors

image by António Martins modified by Željko Heimer

• Specifications and Construction Sheet
• Colors

See also:

• Malaysia
• Malaysia: index of all pages

Other sites:

• Gambarajah Bendera at the Jalur Gemilang website

Specifications and Construction Sheet

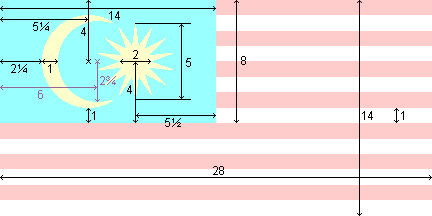

Dov Gutterman reported a construction sheet in the Jalur Gemilang website.
António Martins, 14 September 1999

Since the dimensions given by António Martins were obtained measuring by hand (in a lighter shade of grey in the above image), it could easily be that the distance of the inner circle (defining the crescent) to the hoist should be precisely 6 units (rather than 5 + 11/12 units) which would place it neatly in the hoistmost point of the circle circumscribing the star. If so, the radius of the inner circle is 2.75 (2 ¾), i.e. the diameter is 5.5 which is a not very weird number since it is already used once in the construction sheet explicitly (distance from fly end of canton to center of the star).
Željko Heimer, 25 May 2002

Also because it is reasonable to think that:

• the circle defining the star has a diameter of 5 units;
• the inner circle defining the crescent has a diameter of 5.5 units; and
• the outer circle defining the crescent has a diameter of 6 units.

Santiago Dotor, 5 April 2005

Color

I found a document with a construction sheet and color specifications with Pantone colors: Blue 2768, Red 199, Yellow 108. Matching CMYK is Blue 100-0-0-0, Red 0-100-100-0, Yellow 0-0-100-0. (Please note that red and blue Pantone values are swapped with each other). (Source)
Zoltan Horvath, 4 July 2024
